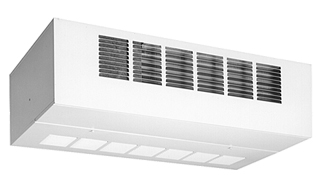

Direct Drive Horizontal & Vertical Units – OverviewDirect Drive horizontal vertical fan coil main

Whalen Horizontal and Vertical Direct Drive Units come in a variety of configurations to meet practically any commercial, residential and institutional system and design requirement.

Whether you need concealed or exposed … with or without plenums … hot water, chilled water and/or electric heat … 2-pipe or 4-pipe configurations, the choice is yours!




  • Benefits
  • How It Works
  • Technical Data
  • Literature

Direct Drive Fan Coil Units

The Whalen Company’s fan coil units feature a wide range of floor, wall and ceiling models with numerous air flow arrangements that are designed to work within varying space requirements.

From our sales support staff to engineering and manufacturing, we work closely with customers to specify the right combination of products to achieve the ultimate goal: creating the most comfortable and energy-efficient indoor climate possible.

  • Each robust fan coil design features heavy-gauge materials for long life and years of trouble-free service
  • Closed cell insulation plus positively sloped drain pans ensure superior indoor air quality
  • Acoustic and thermal insulation for quiet operation
  • Lower installed costs
  • ETL certified units comply with applicable standards for safety and performance

At Whalen, our customers continuously benefit from our tradition of providing safe, high quality systems. The attention to detail we provide, combined with our custom design capabilities, highlight our strength and heritage in the marketplace.


A fan coil unit is one of the simplest methods to heat and cool.  The basic fan coil system consists of an air coil and a motor-blower assembly.

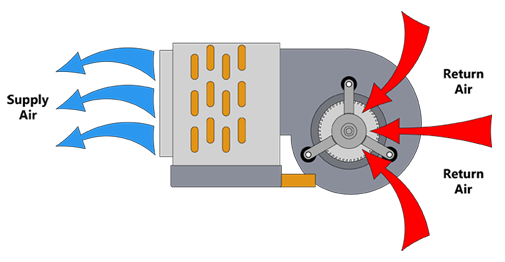

Whether the unit operates with a free-return, plenum return, or an exposed cabinet, the basic operation of the unit is the same.  By passing air from the occupied space across the air coil, heat is added to, or removed from, the air stream as it is supplied back to the occupied space.

horizontal fan coil 01


Direct Drive Fan Coil with Electric Heat

Direct Drive Fan Coil Electric Heat

Direct Drive Fan Coil

Direct Drive Fan Coil

High Performance Direct Drive Fan Coil

High Performance Direct Drive Fan Coil

WCW Direct Drive Fan Coil

Direct Drive Fan Coil WCW Physical Data

WMB Direct Drive Fan Coil

Direct Drive Fan Coil WMB Physical Data

WVCB Direct Drive Fan Coil

WVCB Direct Drive Fan Coil
